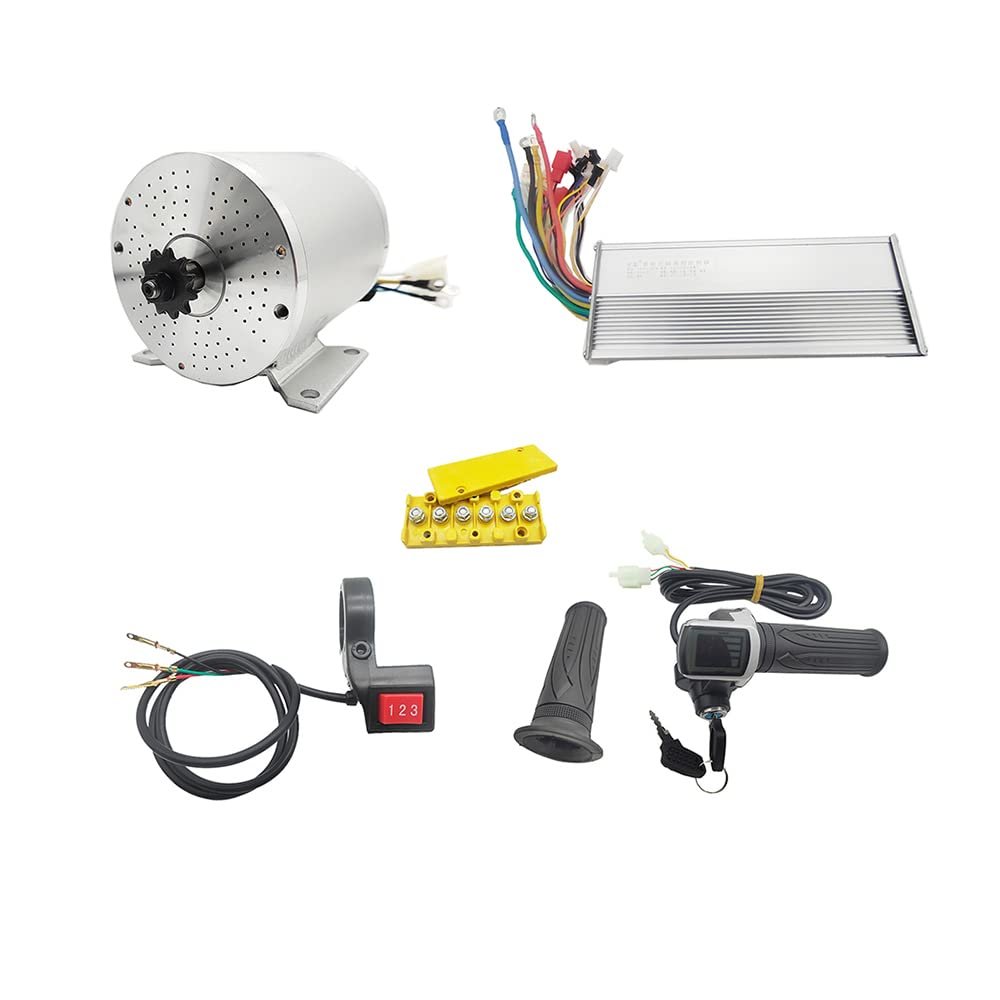

1000W Electric Brushless DC Motor Kit - 36V 3100rpm Brushless Motor with 27.7A Speed Controller and Throttle Grip Kit for Go Karts E-Bike Electric Throttle Motorcycle Scooter

Description

• Brushless DC Motors: Brushless DC motors are generally quieter, smaller, and lighter than brushed motors. The 36V 1000 W motor output makes it more efficient to generate electricity, resulting in longer battery life. The 40CR motor head and high-quality aluminum housing are sturdy and reliable.
• Super-fast revs: This 36-volt brushless motor has high torque and can reach super-fast revs of 3100 rpm, ensuring high work efficiency.
• Forward and Negative: You can control the motor to switch clockwise or counterclockwise rotation by connecting the reverse gear function of the controller.
• Convenient Speed Control: This 1000 W DC motor is equipped with a speed controller to provide speed control in ideal operation. The controller also has a 3-speed function, which can realize low-speed, medium-speed, and high-speed shifting.
• Easy Installation: This 36 V brushless DC motor has a compact body, light weight, easy to carry and operate, compatible with electric scooters, electric bicycles, electric bicycles, electric scooters, electric motors, motorcycles, small electric motors, etc.

Note: Due to the motor design having only 2 speed modes, even if the controller has a 3-speed interface, the motor has already reached its maximum speed in the second gear, so the third gear speed and the second speed are the same. The reverse gear has only one speed mode, which is the low-speed mode.
before use motor,please make self-leaning test,after test motor can work well.some buyer received package.not make self-leaning test,motor can't work well.so think motor not work.
About Motor:
1.Model:MOTOR MY1020
2.Motor Type: High-Speed BLDC brushless Motor
4.Out put /W: 1000W.
5.Rated Speed:3100RPM/MIN
6.Rated Current:27.7A
7.Weight:3.5kg
8.Shaft diameter:12mm
9.Rated Torque:3.5 N.m
10.Applicable: Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY
11.Installation: Center,MID DRIVE SYETEM.
12.Sprocket/Chain: T8F Sprockt /Chain.
13.Speed:30-50km/h
36V-48V 1000W controller can work with hall connect sensor or not connect hall sensor
Rated Voltage: 36V/48V
Low Voltage : 31V/42V0.5V
Rated Power: 1000W
Limit Current:30A
1.self-learning
2.cruise line
3.reverse line
4.high brake
5.low brake
6.3-speed (low/middle/high)
7.throttle
8.electric lock
9.hall line
10.LCD instrument line
11.Anti-theft power supply
12.Anti-theft signal
13.battery (red battery+, black battery-)
14.motor
15.pointer meter line
how to connect
1.connect the motor line (color to color connection
2. connect the battery line(red:battery + , black:battery-)
3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock
4.off power,let two self-learning lines connect together, open power,the motor will forward or reverse.
(1.if motor forward ,Separate the self-learning line.
2.if motor reverse, Separate the self-learning line. let two self-learning line connect together againif motor forward ,Separate the self-learning line.) Self-learning is to adapt to the supply voltage,adjust the running direction of the motor,simultaneously pairing phase
note:when use throttle control speed,two self-leaning line must separate.when two self-leaning line connect together,the throttle can't work. 5.other functions can be connected as needed.
